Dataset Overview¶

DDACS contains 32,466 LS-DYNA simulations of a dual phase steel sheet metal part formed and trimmed in a two stage tooling setup. Each simulation captures deep drawing (OP10) followed by cutting (OP20) and the springback after both. The full release is ~640 GB (~20 MB per simulation, HDF5 + gzip).


DOI	10.18419/DARUS-4801
Records	32,466 simulations
Total size	~640 GB
File size	~20 MB (gzip + shuffle)
Format	HDF5
License	CC BY 4.0

Version compatibility¶

The ddacs Python package major version tracks the DaRUS dataset major version. The pairing is enforced by the Croissant manifest bundled with each release: a mismatched package version will fail to resolve the field map.

Package	DaRUS dataset
`ddacs 3.x`	v3.0 and any future v3.x updates (current)
`ddacs 2.x`	v1.0 and v2.0

Pin the package major to the dataset major you target, for example pip install 'ddacs~=3.0' to stay on the v3 line.

Operations¶

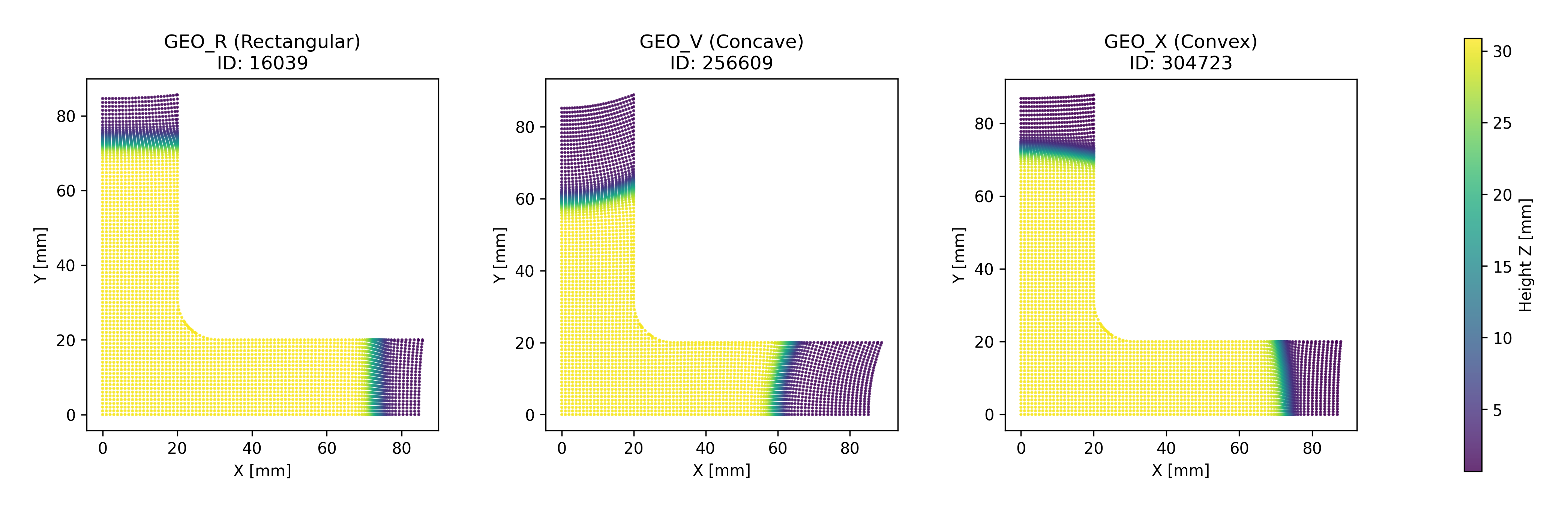

Each simulation runs two operations end to end. OP10 is the deep drawing step: the blank holder presses the sheet against the die, the punch travels down, and the tools are released. OP20 then trims the formed cup and lets the part relax once more.

The blank is stored across multiple timesteps in each operation, capturing the transient state of the workpiece during forming and after springback.

Components¶

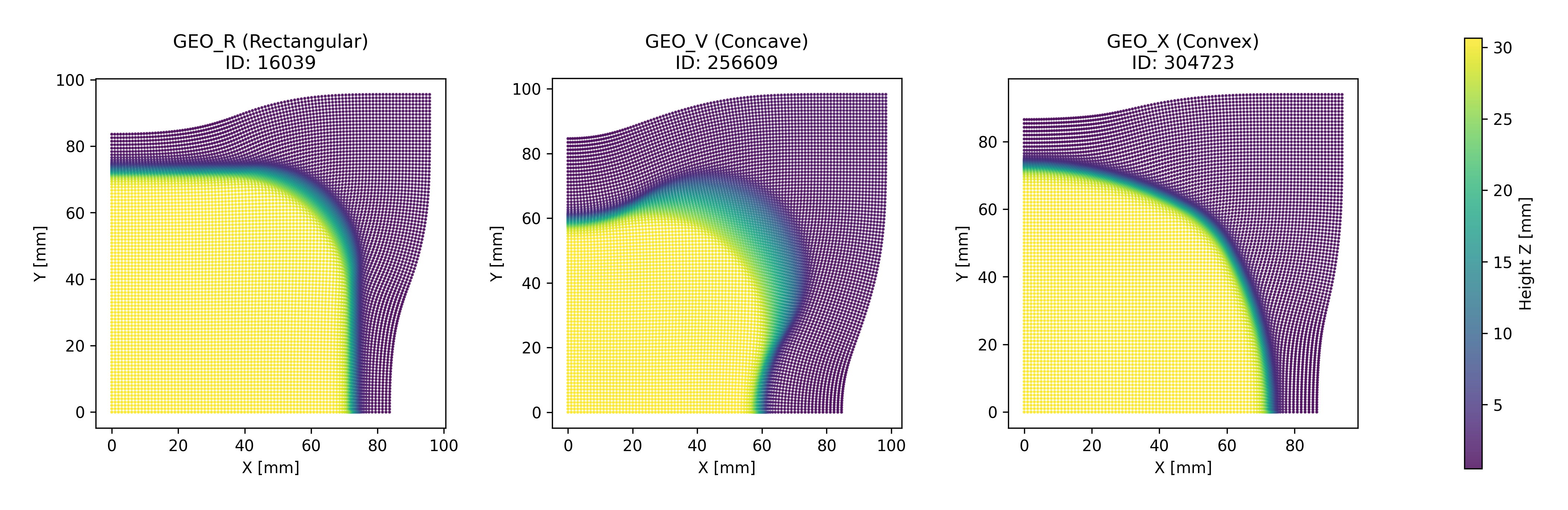

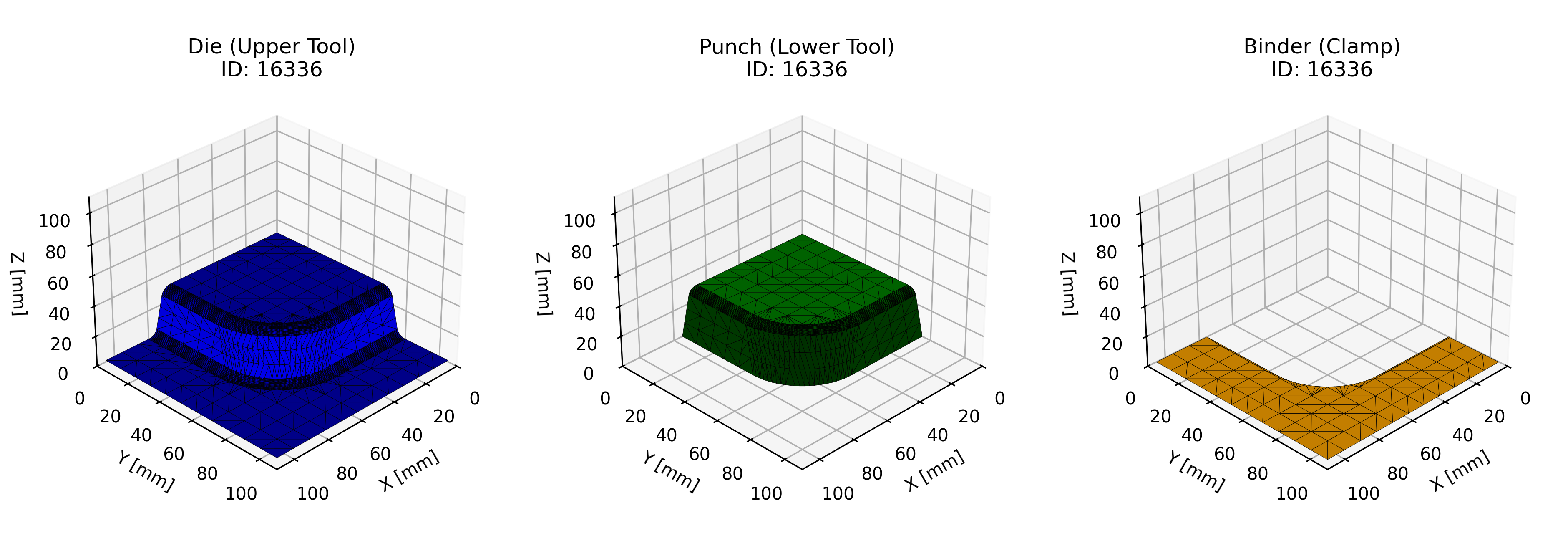

Four LS-DYNA parts are tracked per simulation: the blank workpiece and the three tools (binder, die, punch). Tools are rigid and recorded at three OP10 timesteps; the blank is recorded across all four (initial, mid forming, max forming, after springback).

Timesteps¶

Component	Timesteps	What each one is
OP10 blank	4	initial, 50 % forming, max forming, after springback
OP10 tools	3	initial, 50 % forming, max forming
OP20 blank	2	after cutting, after springback

Index -1 is not the same state everywhere

-1 selects the last timestep, which is after springback for the OP10 blank and OP20 blank, but max forming for the OP10 tools.

RDDAC sub study¶

396 of the 32,466 simulations form the RDDAC sub study, an experimental investigation of the deviation between LS-DYNA simulation and physical reality. The accompanying paper, Statistical Analysis of Simulation to Reality Deviation in Deep Drawing with a Benchmark Dataset, characterises the epistemic uncertainty and proposes mitigations; the analysis code lives at github.com/BaumSebastian/RDDAC. The rddac column of process_parameters.csv flags membership; DDACSDataset(where=lambda row: row["rddac"]) streams only the sub study.

Excluded simulations¶

Eleven simulations from the original grid are not part of the v3 release. Six were dropped during the v3 repackaging because of corrupted gzip chunks in their OP20 datasets; five never finished the original FE run on the HLRS cluster. None of them appear in process_parameters.csv, so iterating the CSV yields only the simulations that successfully shipped.

Sim IDs	Geometry	Reason
16095, 17061, 19044	rectangular	Corrupted gzip chunk in OP20
259953, 259968	concave	Corrupted gzip chunk in OP20
398073	convex	Corrupted gzip chunk in OP20
5 further IDs	rectangular	FE solver did not produce output
